PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine

Name: PRYHG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine
Brand: PRINTYOUNG
Price: 48000 USD

Quality PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine for sale

Brand Name : PRINTYOUNG

Model Number : PRY-HG

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 48000~52000 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Model : PRY-1450HG , PRY-1650HG

Max. Sheet Size : 1450 * 1450 mm , 1650 * 1650 mm

Min. Sheet Size : 380 * 350 mm

Top Paper Thickness : 120 ~ 500 g

Precision for Front and Back : ± 1 mm

Weight : 9280 kgs , 10500 kgs

Speed : 0 ~ 200 m/min

Air Consumption : 0.2 m^3/min

Overall : 15.5 * 2.4 * 2.4 m , 15.7 * 2.6 * 2.4 m

Machine Power : 22 kw , 25 kw

Contact Now

PRY-HG Flute Laminating Machine

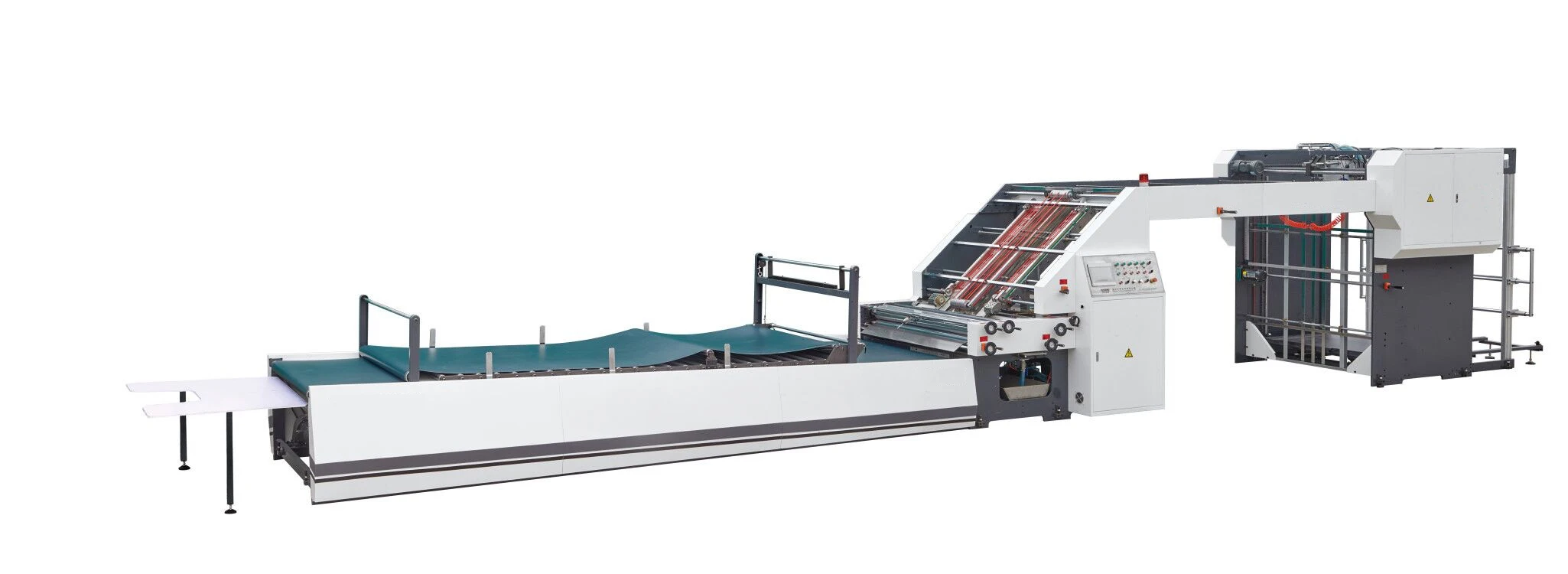

PRY-HG Series Heavy Duty Type Intelligent Adjustment Cardboard Flute Laminating Machine

Features

This machine adopted with motion control system and servo correction system perfect combination,using multiple sets of photoelectric sensor at the end of the paper the relative position,control top paper on both sides of the servo motor independent drive compensation action,top paper and bottom paper precise positioning.Servo laminating machine has the advantages of simple operation,only need to input the size of paper can be completed automatically adjust the machine.

1.Automatic width adjustment for width when set up the sheet size;
2.Automatic adjustment for glue amount and roller pressure;
3.Max linear speed 200m/min;
4.Non-pressing lead edge feeding system,strength increase by 5%;
5.Casting frame 40mm;
6.Φ165mm jumbo roller for transsmion with no glue splashing;
7.Linkage control by the 9 servo motors for the whole machine;
8.Streaming feeding for top sheets and won’t get stuck;
9.Oil-free bearing technology and maintaince-free;
10.Independent servo ilde speed transmission for glue roller;
11.Stepping motor controls the format-set-up, high accuracy.

Technical Parameters

PRY-HG Flute Laminating Machine
Model	PRY-1450HG	PRY-1450HG
Max. Sheet Size	1450 * 1450 mm	1650 * 1650 mm
Min. Sheet Size	380 * 350 mm
Top Paper Thickness	120 ~ 500 g
Precision for Front and Back	± 1 mm
Weight	9280 kgs	10500 kgs
Speed	0 ~ 200 m/min
Air Consumption	0.2 m³/min
Overall	15.5 * 2.4 * 2.4 m	15.7 * 2.6 * 2.4 m
Machine Power	22 kw	25 kw
Bottom Paper	A , B , C , E , F , G Corrugated paper Four Layers Corrugated paper : AB/BB/BC/EE Cardboard paper is above the 300gsm

Top Sheet

1.Cardboard from 150gsm to 500gsm;

2.The kraft paper from the 145gsm to 500gsm;
3.The glossy/art paper is above the 120gsm.
Bottom Sheet

1.A/B/C/E/F corrugated paper;

2.The four layers corrugated paper:AB/BB/BC/BE/EE;
3.The gray board paper from 600gsm to 1800gsm;

4.The cardboard is above the 300gsm.
Glue

Cornstarch glue or the glue is suitable for the flute laminating machine.

The Spare Part List for laminating machine(free)
1.Synchronous belt:8M*35*2400MM:1PC
2.Sucking belt:1040*120*4MM:1PCS
3.The red rubber belt:Φ4:20M
4.Feeder tablet:2PCS
5.Feeder sucking rubber ring:10PCS
6.Delta-ring:4PCS
7.Electric soldering iron:1PC
8.Oil gun:1PC
9.TOOLBOX:1SET
Remark:these spare parts will be sent with the machine.

Configuration

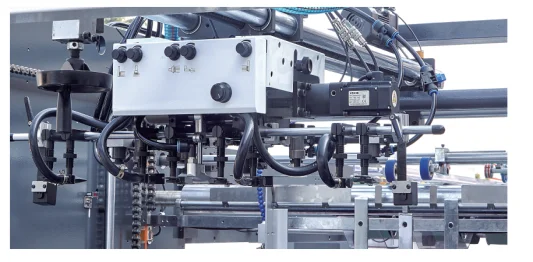

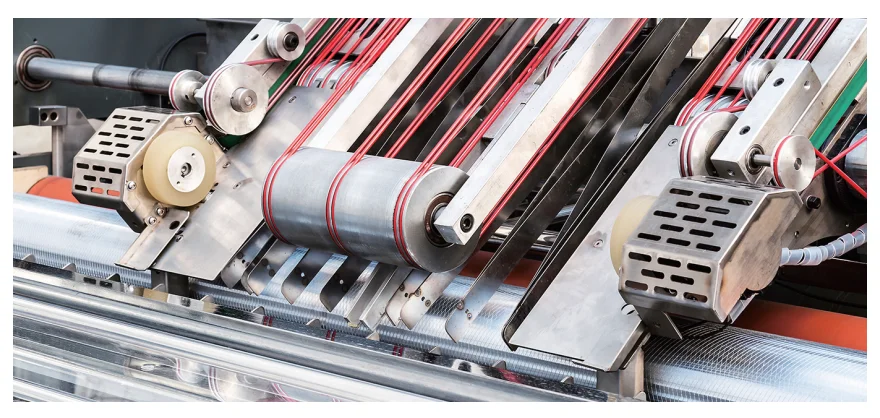

Top Sheet Feeding Mechanism

Equipped with high speed auto dedicated feeder,both paper lifting and feeding nozzle can freely adjust angle to the paper,to ensure that whether thick or thin paper can be delivered rapidly and smoothly.

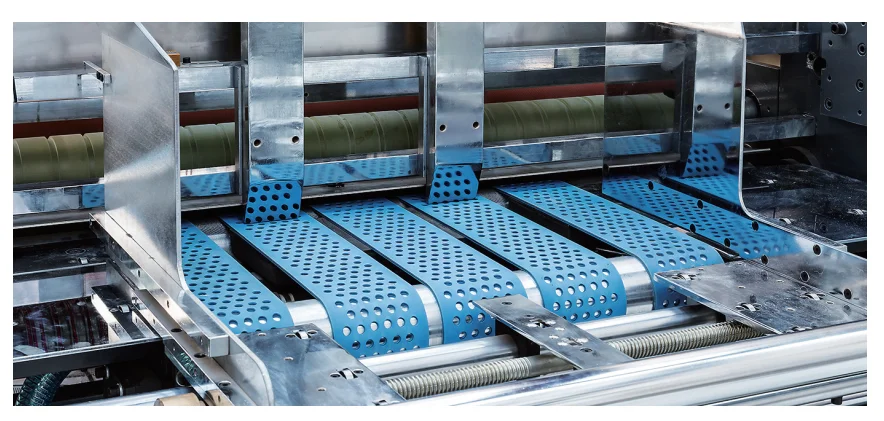

Bottom Paper Feeding

Use imported Servo motor electric controlling system,with Japan NITTA suction belt to make suction power inverter,could run both corrugated paper and cardboard that is above 300gsm.

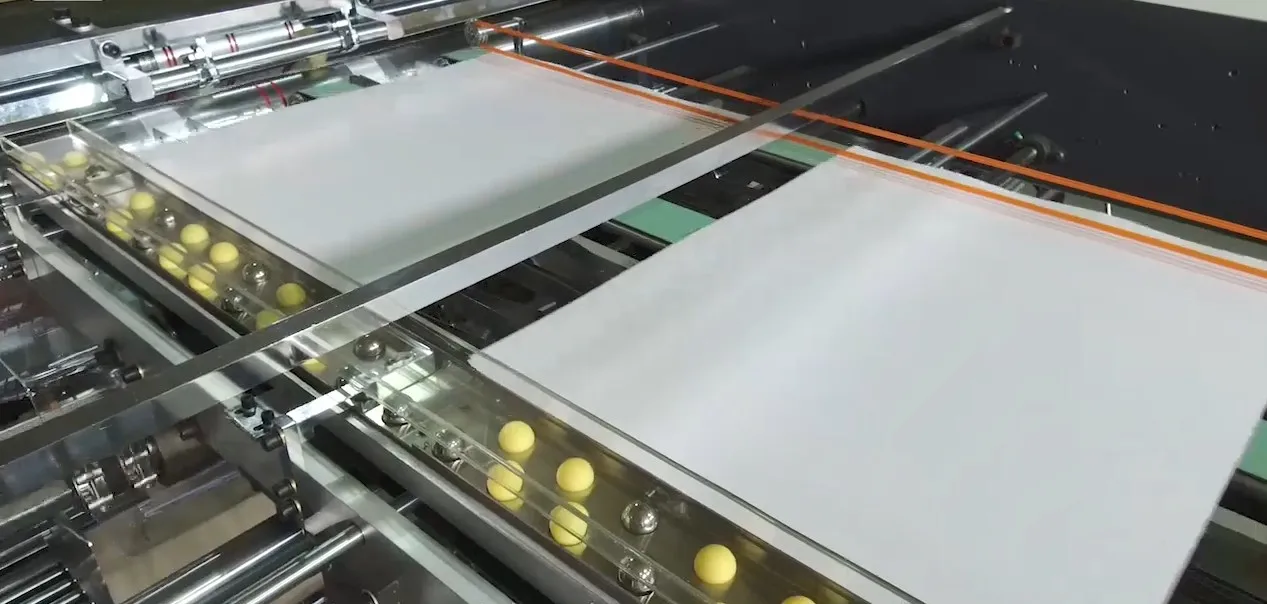

Side-pulling Positioning

Using side-pulling balls for the top sheet positiong,making it always passing in one direction,performing high accuracy for the side alignment.

Positioning System

Using groups of photoelectric sensing bottom paper forward relative position,control top paper on both sides of the servo motor,independent compensation action,the top paper and bottom paper precision laminated.

Transmission Part

Imported double toothed synchronous belt drive,equipped with a tensioning device to ensure the accuracy of the transmission,stable,low noise.

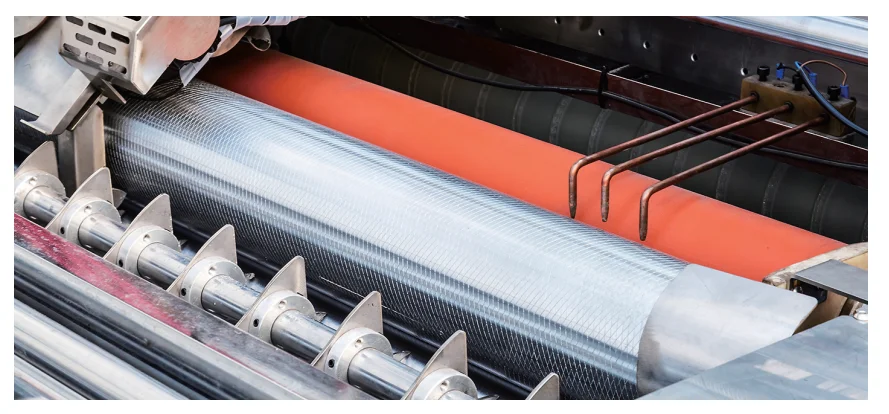

Glue Roller

Stainless steel roller,never rust,after narrowly grinding,guaranteed the minimum amount glue coated evenly.Down roller be cleaned by water roller.The diameter has been enlarged to Φ165mm to ensure a stable running for high speed and no glue splashing.

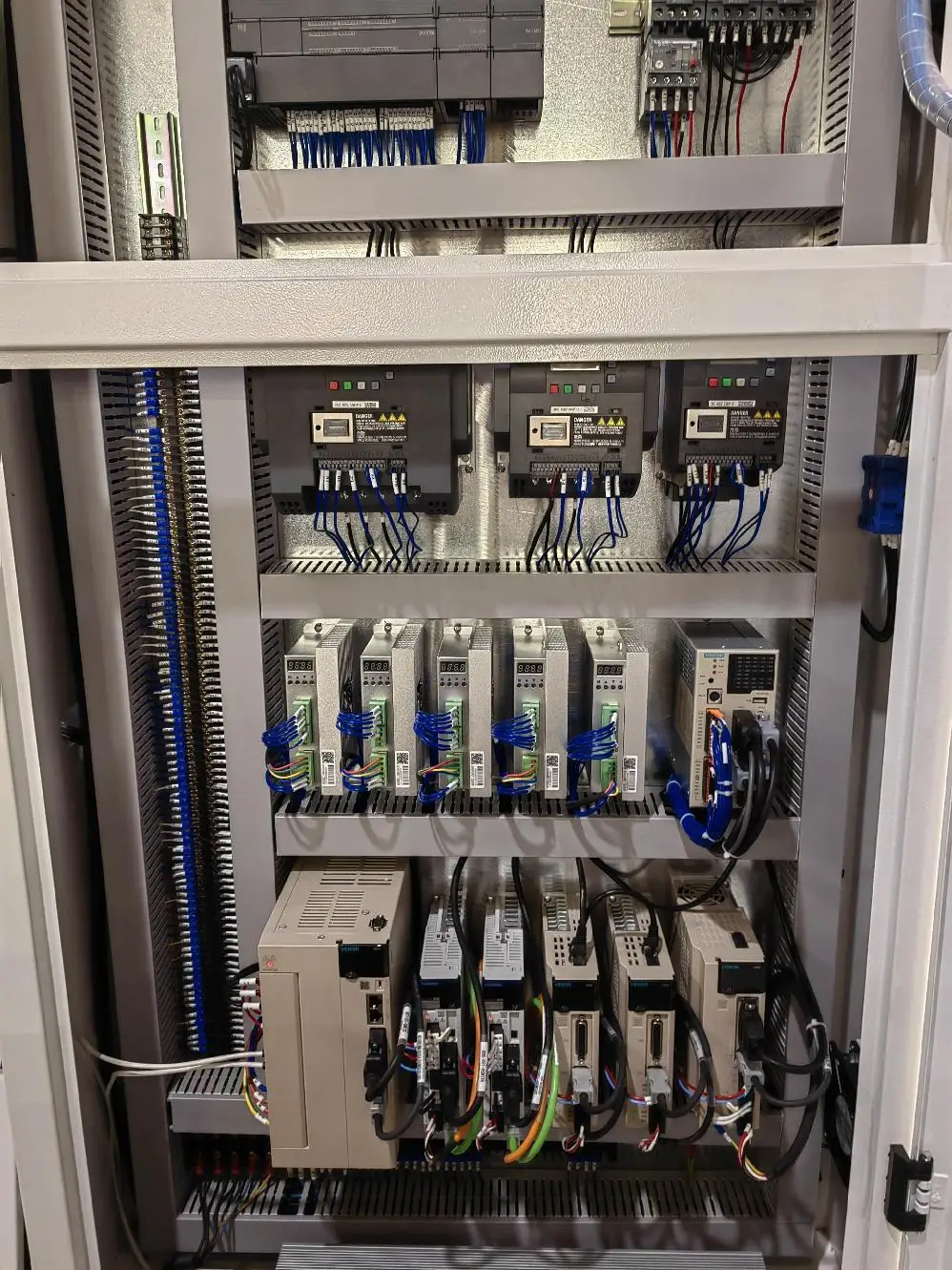

Electrical System

Designed in the accordance with European CE requirement,ensure machine stability,high efficiency and low failure.Using man-machine interface and PLC combination,display all the information,such as warning,error detect,failures,and operating speed.

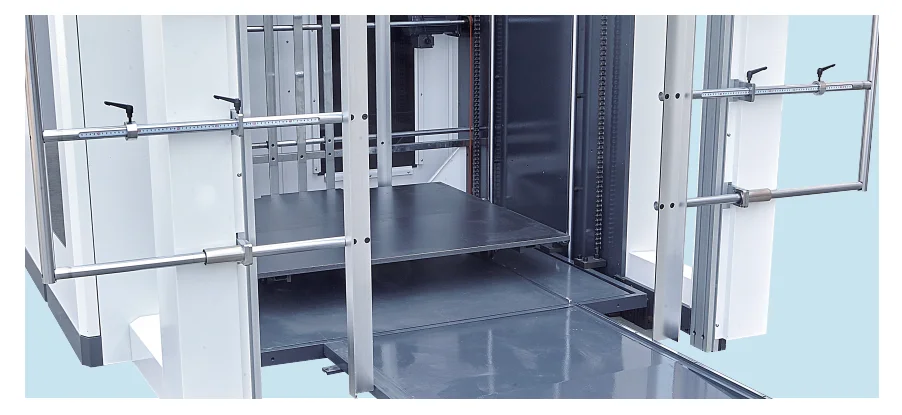

Pre-stack Section

Pre-stack pile of paper under the condition of non-stop,the piled sheet could also be pushed in directly by the forklift;improve efficiency.The special design of the pre stack paper frame,save time and effort.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
